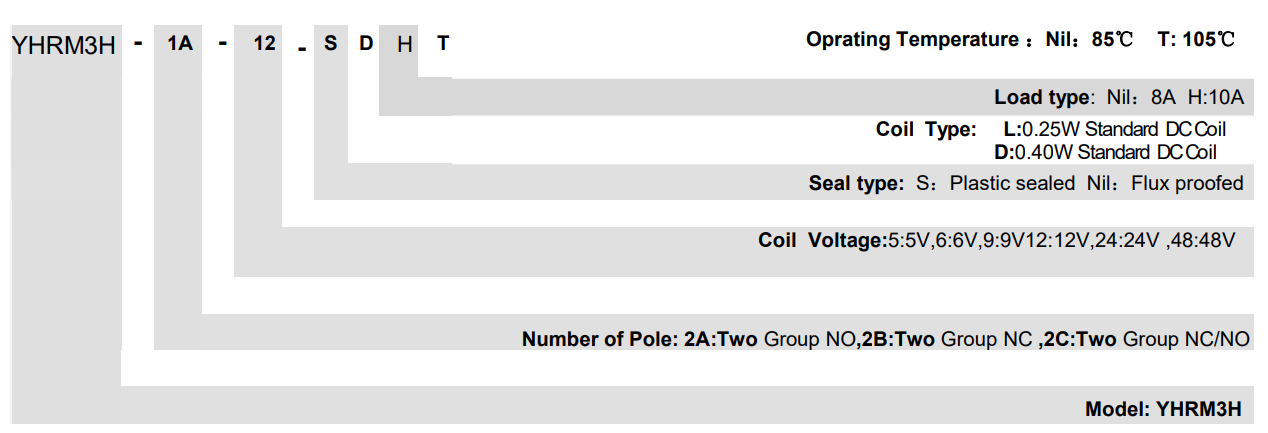

Contact data |
||||
|
Contact Arrangement |
2A(2H) |
2B(2D) |
2C(2Z) |
|
|
Contact Material |
A g Alloys |
|||
|
Conatct Rating(Resistive) |
8A/250VAC /30 VDC |
8A/250VAC/30 VDC |
NO:8A NC:8A |
|
|
Max.Switching Power |
2000VA |
|||
|
Max.Switching Voltage |
250VAC |
|||
|
Max.Switching Current |
8 A |
|||
|
Contact Resistance |
≤100mΩ（1A24VDC） |
|||
|
Operation Life |
Electrical |
1×105ops |
||
|
Mechanical |
1×107ops |
|||
|
Coil Parameter |
|||||||
|
Rated coil power |
Sensitive：250mW Standard：400mW |
||||||
|
Sensitive type |
|||||||
|
Coil voltage |
Pick up Voltage VDC |
Release voltage VDC |
Max voltage VDC |
Nominal Current |
Coil Resistance Ω（1±10％） |
Coil power consumption W |
|
|
5 |
75% |
10% |
130% |
50 |
100 |
0.25 |
|
|
6 |
41.7 |
144 |
0.25 |
||||
|
9 |
27.7 |
325 |
0.25 |
||||
|
12 |
20.8 |
576 |
0.25 |
||||
|
24 |
10.4 |
2304 |
0.25 |
||||
|
36 |
6.9 |
5217 |
0.25 |
||||
|
48 |
5.2 |
9216 |
0.25 |
||||
|
Coil Parameter |
||||||
|
Standard type |
||||||
|
Coil voltage VDC |
|
Release voltage VDC |
Max voltage VDC |
|
Coil Resistance Ω（1±10％） |
Coil power consumptio |
|
5 |
75% |
10% |
130% |
80.6 |
62 |
0.40 |
|
6 |
66.7 |
90 |
0.40 |
|||
|
9 |
44.6 |
202 |
0.40 |
|||
|
12 |
33.3 |
360 |
0.40 |
|||
|
24 |
16.7 |
1440 |
0.40 |
|||
|
36 |
11.1 |
3240 |
0.40 |
|||
|
48 |
8.7 |
5520 |
0.40 |
|||
|
Operation condition |
||||
|
Insulation Resistance |
1000MΩ |
|||
|
Dielectric Strength |
|
|||
|
Between Contacts |
1000VAC |
|||
|
Between Contacts and Coil |
5000 VAC |
|||
|
Action time (rated voltage) |
≦15ms |
|||
|
Release time (rated voltage) |
≦5ms |
|||
|
Shock Resistance |
98m/s2 980m/s2 |
|||
|
Vibration Resistance |
10Hz~55Hz 1.5mm Double amplitude 1.5mm |
|||
|
Terminals Strength |
6N |
|||
|
Solderability |
280±10℃ |
2±1s℃ |
||
|
Ambient Temperature |
‐40~85℃ |
|||
|
Relative Humidity |
5%~85% RH |
|||
|
Mass |
~13 g |
|||
